Europe · Charging cables Type 2 Charging Cable reference hardware

Reference hardware. Final AmpByte finish and package confirmed before sale.

3.5 / 7 / 11 / 22 kWPower / function

Type 2 ↔ Type 2Connection

4Model configurations

A GOOD CONNECTION GOES A LONG WAY.

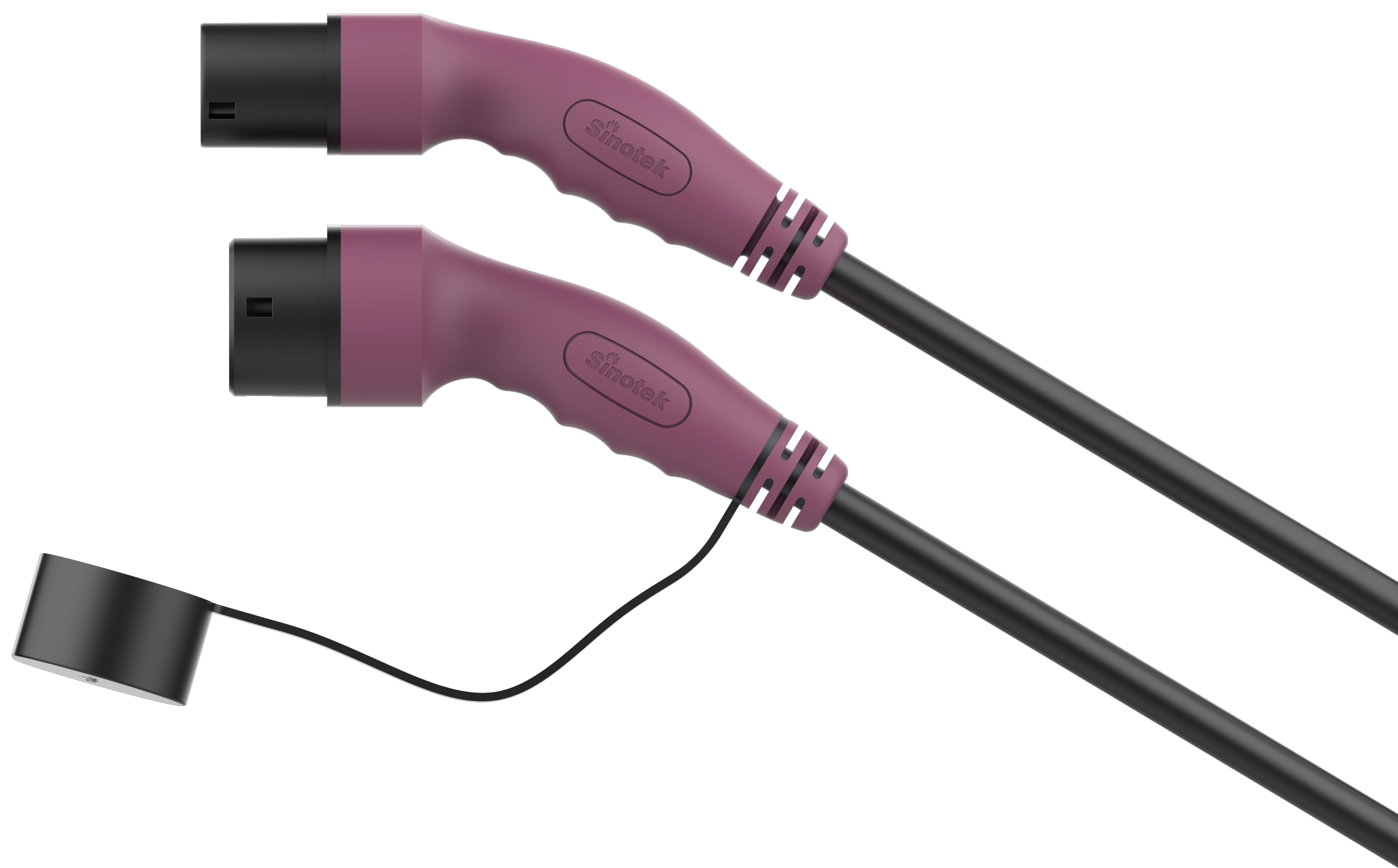

Type 2 Charging Cable

A cable worth taking everywhere.

For compatible untethered home and public AC charge points, choose the cable that matches your car, supply and charging power. The Type 2 range uses a flexible TPU jacket, soft TPE overmolding and solid-core connector construction, with single- and three-phase options.

A good fit for

European drivers using compatible socketed AC chargers and choosing a cable for their car’s AC limit.

Full specifications ↓Ask a product question ↗

MORE THAN A NUMBER ON THE BOX.

What it means
for your everyday.

More confidence in the connection

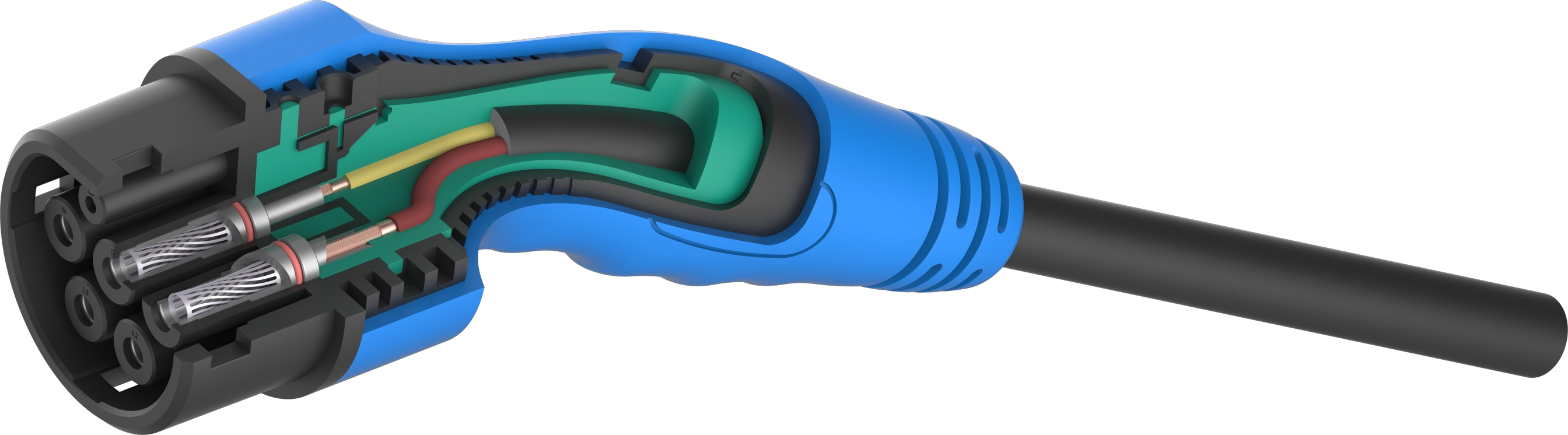

Solid-core TPE overmolding surrounds the rigid connector skeleton, reducing internal voids around the construction.

Contacts made for repeated use

The connector design specifies beryllium-copper springs, 5 μm silver plating and at least 10,000 mating cycles.

Choose the reach you need

The catalog lists 3 m, 5 m and up to 7.5 m lengths. Model references shown use the 5 m suffix; final length/SKU combinations must be confirmed.

Flexible through the seasons

TPU cable and a catalog operating range of −35°C to +50°C support everyday handling. Keep the contacts clean and follow care instructions.

CHOOSE THE VERSION THAT FITS.

One family. Clear differences.

Model-by-model comparison
Reference model	Power / role	Current	Phases	Connection / communication
A1-1P16-5000	3.5 kW	16 A	1	Type 2 ↔ Type 2 Passive AC cable
A1-1P32-5000	7 kW	32 A	1	Type 2 ↔ Type 2 Passive AC cable
A1-3P16-5000	11 kW	16 A	3	Type 2 ↔ Type 2 Passive AC cable
A1-3P32-5000	22 kW	32 A	3	Type 2 ↔ Type 2 Passive AC cable

THE COMPLETE PICTURE.

Specifications you can compare.

Shared specifications
Specification	Detail
Single-phase voltage	230 V L–N AC
Three-phase voltage	400 / 230 V L–L / L–N AC
Frequency	50 / 60 Hz
Vehicle end	IEC 62196-2 Type 2-IIe
Charge-point end	IEC 62196-2 Type 2-IIb
Protection degree	IP54
Operating temperature	−35°C to +50°C
Storage	−40°C to +85°C · ≤95% RH
Length options	3,000 / 5,000 / up to 7,500 mm
Jacket / grip	TPU cable / soft TPE overmolding
Service-life design	10,000 cycles minimum, per catalog
Rc values	16 A: 680 Ω · 32 A: 220 Ω

Cable by configuration
Model	Cable conductor	Outside diameter
A1-1P16-5000	2.5 mm² × 3 cores	10.5 mm
A1-1P32-5000	6.0 mm² × 3 cores	13.2 mm
A1-3P16-5000	2.5 mm² × 5 cores	13.2 mm
A1-3P32-5000	6.0 mm² × 5 cores	16.2 mm

Data from the supplied September 2026 engineering catalog, page(s) 4–7. Actual charging power is limited by the vehicle, charger, cable, adapter and available supply. Ratings refer to the listed component and operating conditions. Final SKU documents govern installation and regional approvals.
