Match the system.
Omni-Connect, Flex-Link and the fixed-charger adapter leads are distinct families. A similar-looking connection does not make them interchangeable.
THE RIGHT ADAPTER. THE RIGHT LIMIT.
More places to charge.
A clearer way to connect.
Explore every adapter system in the catalog, with model references, current limits and the differences that matter.
Omni-Connect · North America ↓Omni-Connect · Europe ↓Flex-Link · Europe ↓M2-11 supply adapter options ↓Go household-supply adapter ↓Alert-Pop 3.5 regional plug options ↓
Read the operating limit.
The charger may deliberately run below an outlet’s rating. The tables show catalog charging values, not permission to change circuit protection.
Check the whole path.
The vehicle, charger, adapter, cable and supply all set limits. Use the exact approved combination and follow the hardware instructions.
01 / CONNECTION FAMILY
Omni-Connect · North America
For OMNI-1772 / OMNI-3400. The operating current shown is the catalog charging limit, not the outlet nameplate rating.
| Power connection | Charging current | Supply | Output |
|---|---|---|---|
| NEMA 14-50P | 32 A | 240 V | 7.7 kW |
| NEMA 6-50P | 32 A | 240 V | 7.7 kW |
| NEMA 14-30P | 24 A | 240 V | 5.8 kW |
| NEMA TT-30P | 24 A | 120 V | 2.9 kW |
| NEMA 6-20P | 16 A | 240 V | 3.8 kW |
| NEMA 5-15P | 12 A | 120 V | 1.4 kW |
Source: engineering catalog, page(s) 27. Included adapters, retail availability and local approvals are confirmed on the final offer.
Explore the matching charger ↗02 / CONNECTION FAMILY

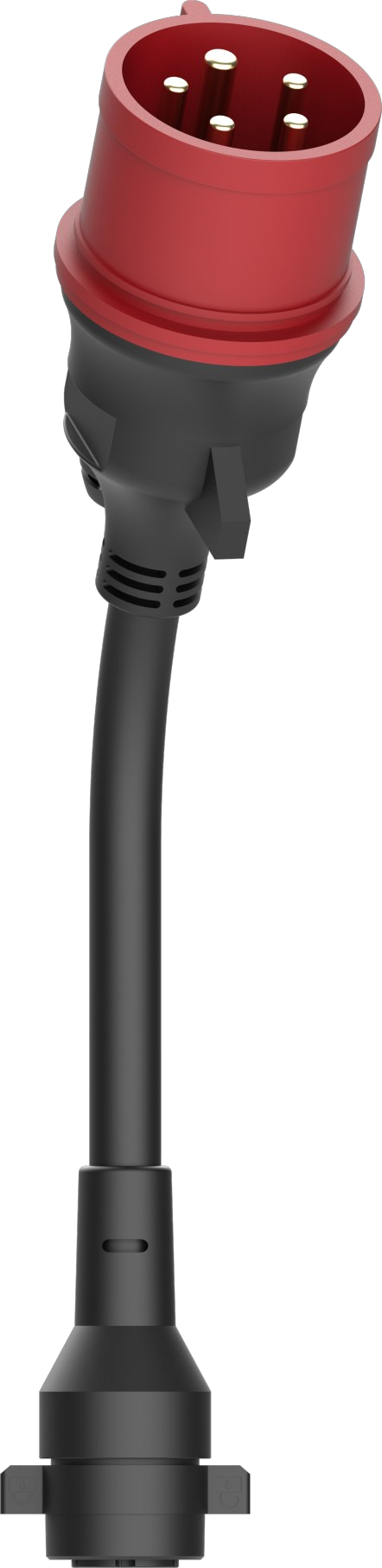

Omni-Connect · Europe
The same adapter can produce different power on different charger versions. Domestic options use the reduced operating current shown. Do not substitute Flex-Link adapters.
| Adapter model | Power connection | Operating current | M2-7M | M2-11M | M2-22M |
|---|---|---|---|---|---|
| AS-32A3P | CEE 32 A · 3 phase | 32 A | 7.36 kW | 11 kW | 22 kW |
| AS-16A3P | CEE 16 A · 3 phase | 16 A | 3.68 kW | 11 kW | 11 kW |
| AS-32A1P | CEE 32 A · 1 phase | 32 A | 7.36 kW | 3.68 kW | 7.36 kW |
| AS-16A1P | CEE 16 A · 1 phase | 16 A | 3.68 kW | 3.68 kW | 3.68 kW |
| AS-SK13A | Schuko | 13 A | 3.0 kW | 3.0 kW | 3.0 kW |
| AS-UK10A | UK | 10 A | 2.3 kW | 2.3 kW | 2.3 kW |
| AS-IT10A | Italian | 10 A | 2.3 kW | 2.3 kW | 2.3 kW |
| AS-CH8A | Swiss | 8 A | 1.8 kW | 1.8 kW | 1.8 kW |
| AS-DM6A | Danish | 6 A | 1.4 kW | 1.4 kW | 1.4 kW |
Source: engineering catalog, page(s) 18–19. Included adapters, retail availability and local approvals are confirmed on the final offer.
Explore the matching charger ↗03 / CONNECTION FAMILY

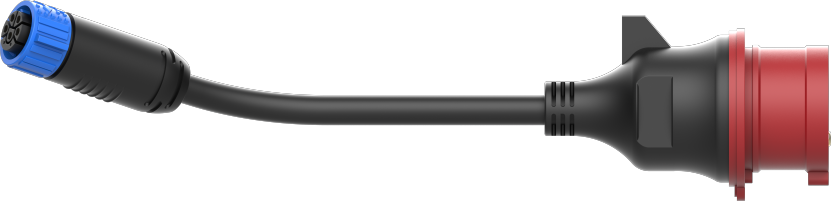

Flex-Link · Europe
Dedicated 0.2 m Flex-Link adapter leads. These use the AS1 family and are separate from Omni-Connect. Confirm the allowed output with the exact charger and supply.
| Adapter model | Power connection | Operating current | Lead length |
|---|---|---|---|
| AS1-32A3P | CEE 32 A · 3 phase | 32 A | 0.2 m |
| AS1-16A3P | CEE 16 A · 3 phase | 16 A | 0.2 m |
| AS1-32A1P | CEE 32 A · 1 phase | 32 A | 0.2 m |
| AS1-16A1P | CEE 16 A · 1 phase | 16 A | 0.2 m |
| AS1-SK13A | Schuko | 13 A | 0.2 m |
| AS1-UK10A | UK | 10 A | 0.2 m |
| AS1-IT10A | Italian | 10 A | 0.2 m |
| AS1-CH8A | Swiss | 8 A | 0.2 m |
| AS1-DM6A | Danish | 6 A | 0.2 m |
Listed domestic outputs: Schuko 3.0 kW at 13 A; UK and Italian 2.3 kW at 10 A; Swiss 1.8 kW at 8 A; Danish 1.4 kW at 6 A. CEE output depends on the charger version and phase.
Source: engineering catalog, page(s) 20–21. Included adapters, retail availability and local approvals are confirmed on the final offer.
Explore the matching charger ↗04 / CONNECTION FAMILY

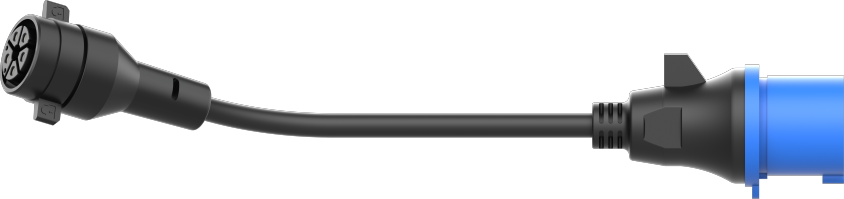

M2-11 supply adapter options
Catalog adapter leads for the 11 kW portable family. These are not the Omni-Connect or Flex-Link modular systems. Compatibility must be confirmed for the exact hardware.
| Model | Wall connection | Charging current | Maximum listed output | Length |
|---|---|---|---|---|
| M211-SK | Schuko | 16 A | 3.68 kW · 1 phase | 0.2 m |
| M211-32A1P | CEE 32 A · 1 phase | 16 A | 3.68 kW · 1 phase | 0.2 m |
| M211-32A3P | CEE 32 A · 3 phase | 16 A | 11 kW · 3 phase | 0.2 m |
| M211-16A1P | CEE 16 A camping | 16 A | 3.68 kW · 1 phase | 0.2 m |
Source: engineering catalog, page(s) 15. Included adapters, retail availability and local approvals are confirmed on the final offer.
Explore the matching charger ↗05 / CONNECTION FAMILY

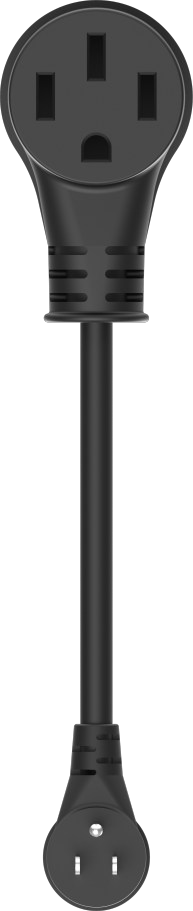

Go household-supply adapter
The catalog shows a specified NEMA 14-50-to-5-15 adapter for Go. At 120 V, Go automatically limits charging to 12 A. Verify the approved adapter, connection and circuit before use.
| Connection | Supply | Charging limit | Listed output |
|---|---|---|---|
| NEMA 14-50 to 5-15 | 120 V | 12 A | 1.4 kW |
Source: engineering catalog, page(s) 28. Included adapters, retail availability and local approvals are confirmed on the final offer.
Explore the matching charger ↗06 / CONNECTION FAMILY

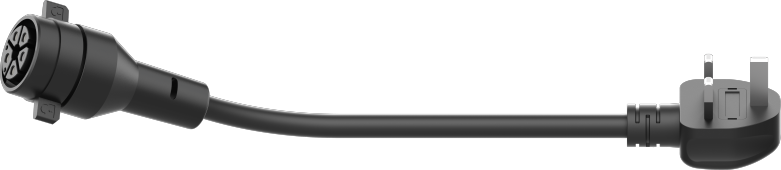

Alert-Pop 3.5 regional plug options
The catalog shows the following factory plug options. Local continuous-current limits and approvals vary; a listed plug is not a promise of AmpByte retail availability in that country.
| Connection options | Selection note |
|---|---|
| Schuko / UK / Italian / Swiss / Danish | Select the exact regional model and safe operating current. |
| 16 A CEE camping | Single-phase CEE option. |
| Australian / Israeli / Brazilian | Catalog options outside the initial target markets; availability unconfirmed. |
Source: engineering catalog, page(s) 12. Included adapters, retail availability and local approvals are confirmed on the final offer.
Explore the matching charger ↗Connect with confidence.
Before swapping or disconnecting any component, follow the exact hardware manual. Do not treat a travel adapter as a substitute for a suitable outlet, circuit or protective device.
